Spartan Peripheral Devices Valve Selection Guide

1.SELECT YOUR VALVE BODY

• Female Thread

• Male Thread

• Sweat

• Single Union

• Double Union

2.SELECT YOUR CARTRIDGE TYPE

• Choice of CV

• Hot and Chilled Water

• 50% Glycol

• Low Pressure Steam

• Pressure Balanced

3.SELECT YOUR ACTUATOR

• Electric

• Pneumatic

• Thermoelectric

• Thermostatic

• Wireless

• Spring Return

• FLP Non Spring Return

EASILY SELECTABLE  EASILY SERVICEABLE

Install a Spartan valve body assembly and easily change the cartridge or actuator while the valve body remains « in-line ». Servicing is so much quicker and easier... it’s the ultimate green solution for piping installations. This guide will help you select the right assembly for your needs.

GENERAL SPECIFICATIONS FOR ALL VALVE BODIES


BODY MATERIALLow zinc bronze, alloy C84400
PRESSURE RATINGANSI 250 (400 PSI to 150˚F (66˚C), 250 PSI to 250˚ F (120˚C))
MAX. TEST PRESSURE1200 PSI (81 bar)
MAX. DIFFERENTIAL P50 PSI (3.5 bar) can be exceeded but with possible water noise
VALVE STEM« Mirror – maker » burnished stainless steel stems
RANGEABILITYSee Internal Cartridge Specification table

STEM TRAVEL

5/32” (4mm)
STEM POSITIONUP = valve open, DOWN = valve closed

V300 SERIES 3 WAY CONTROL VALVE BODIES


1⁄2” or 3⁄4”, 3 Way Diverting Valve Body. Conical Unions on all 3 ports
  • Stem UP flow AB to A (default position),
  • Stem DOWN flow AB to B
  • Select to include:
    •  V320-12N for ½” threaded unions
    • V320-12S for ½” sweat unions (for 5⁄8” copper pipe)
    • V320-34N for ¾” threaded unions
    • V320-34S for ¾” sweat unions (for 7⁄8” copper pipe) Select CV from cartridge type ED
3⁄4” or 1”, 3 Way Diverting Valve Body. Conical Unions on all 3 ports
  • Stem UP flow AB to A (default position),
  • Stem DOWN flow AB to B
  • Select to include:
    • V345-34N for ¾” threaded unions
    • V345-10N for 1” threaded unions
    • V345-34S for ¾” sweat unions (for 7⁄8” copper pipe)
    • Replacement cartridge V345PKG-5.5
1⁄2” or 3⁄4”, 3 Way Diverting Valve Body. Direct Sweat
  • Stem UP flow AB to A (default position),
  • Stem DOWN flow AB to B
  • Select to include:
  • V325-12S for ½” sweat (for 5⁄8” (16mm) OD copper pipe)
  • V325-34S for ¾” sweat (for 7⁄8” (22mm) OD copper pipe)
  • Select CV from cartridge type ED
1⁄2” or 3⁄4”, 3 Way Mixing Valve Body. Conical Unions on all 3 ports
  • Stem UP flow B to AB (default position)
  • Stem DOWN flow A to AB
  • Select to include:
    • V321-12N for ½” threaded unions
    • V321-12S for ½” sweat unions (for 5⁄8” copper pipe)
    • V321-34N for ¾” threaded unions
    • V321-34S for ¾” sweat unions (for 7⁄8” copper pipe)
    • Select CV from cartridge type EX

V200 SERIES 2 WAY GLOBE CONTROL VALVE BODIES

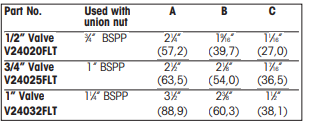

Straight Flat Face Male NPT Union Connections on Both Ports, 1⁄2”, 3⁄4” or 1”

STEM UP OPEN (DEFAULT POSITION)

Select to include:

  • V24020-12N for ½” threaded unions
  • V24020-12S for ½” sweat unions (for 5 ⁄8” copper pipe)
  • V24025-34N for ¾” threaded unions
  • V24025-34S for ¾” sweat unions (for 7 ⁄8” copper pipe)
  • V24032-10N for 1” threaded unions
  • V24032-10S for 1” sweat unions (for 1 1 ⁄8” copper pipe)
  • Select CV from cartridge type EP, EB, EV or BC

Straight Female NPT Port In & NPT Male Union Out, 1⁄2”, 3⁄4” or 1”

STEM UP OPEN (DEFAULT POSITION)

  • Select to include:
  • V241-12N for ½” threaded union
  • V241-34N for ¾” threaded union
  • V241-10N for 1” threaded union
  • Select CV from cartridge type EP, EB, EV or BC

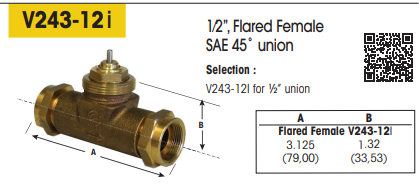

Straight Female NPT Ports In and Out, 1⁄2”, 3⁄4” or 1”

STEM UP OPEN (DEFAULT POSITION)

  • Select to include:
  • V243-12N ½” Valve Body
  • V243-34N ¾” Valve Body
  • V243-10N 1” Valve Body
  • Select CV from cartridge type EP, EB, EV or BC

Straight Direct Sweat Connections, 1⁄2”or 3⁄4”

STEM UP OPEN (DEFAULT POSITION)

  • Select to include:
  • V245-12S ½” Valve Body (for 5⁄8” copper pipe)
  • V245-34S ¾” Valve Body (for 7⁄8” copper pipe)
  • Select CV from cartridge type EP, EB, EV or BC

Angle Female NPT In & Male NPT Union Out, 1⁄2”, 3⁄4” or 1”

STEM UP OPEN (DEFAULT POSITION)

  • Select to include:
  • V261-12N for ½” Valve Size
  • V261-34N for ¾” Valve Size
  • V261-10N for 1” Valve Size
  • Select CV from cartridge type EP, EB, EV or BC

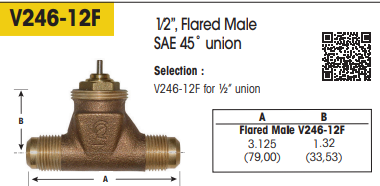

Select the valve cartridge type and CV value to best suit your application such as hot and chilled water, low pressure steam or high close-off pressures.

INTERNAL CARTRIDGES - FIELD REPLACEABLE & INTERCHANGEABLE

All Spartan valve body assemblies are service/maintenance free with interchangeable internals (in the form of a replaceable cartridge) for specific applications with variations of equal percentage parabolic or linear characterized globe plungers. CV (KV) values can be changed without having to remove the valve from the line simply by changing the cartridge

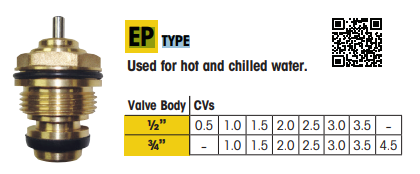

STANDARD CLOSE OFF

EP Type



HIGH CLOSE OFF



Balanced cartridge used for high close-off pressure applications (up to 100 psi) for hot and chilled water.

15PSI STEAM



(for 2 way valve body) Used for low pressure up to 15PSI steam applications recognizable by nickel plated cap.

THE SPARTAN ADVANTAGE
• I nternals are equipped with 1½ million cycles (3 million repositions)
• Burnished mirror finish stainless steel stems
• Micro machined accurate parabolic characterized plugs
• Compatible with Ethylene/ Propylene lycol

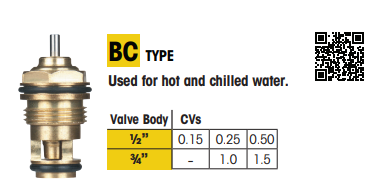

DIVERTING- 3 WAY

ED TYPE
Used for 3 way diverting V320, V323, V325 valve bodies for hot and chilled water.

MIXING- 3 WAY
EX TYPE
Used for 3 way mixing V321 valve bodies for hot and chilled water.


TERMINAL UNIT ACTUATORS

ELECTRIC - FAIL LAST POSITION - SYNCUBE ACTUATORS

MODELSIGNALVOLTFEATURES
ME4140Floating24VacEnd of travel switch-off, complete shutdown *
ME4240PWM24VacPulse Width Modulation 0.25-5.0 secs. Feedback 1-5 Vdc *
ME4340Modulating24VacSelectable 0-10Vdc, 2-10Vdc, 4-20mA. Feedback 1-5 Vdc *
ME4344Modulating24VacSelectable 0-5Vdc, 5-10Vdc. Feedback 1-5 Vdc *

ELECTRIC - SPRING RETURN (FAIL SAFE) - POWER CUBE ACTUATORS

ME4430WON-OFF24VacN.O. (Normally open)
ME4430SON-OFF24VacN.O. with SPDT auxiliary switch
ME4431WON-OFF110VacN.O.
ME4431SON-OFF110VacN.O. with SPDT auxiliary switch
ME4530WON-OFF24VacN.C. (Normally closed)
ME4530SON-OFF24VacN.C. with SPDT auxiliary switch
ME4531WON-OFF110VacN.C.
ME4531SON-OFF110VacN.C. with SPDT auxiliary switch
ME4740PWM24VacN.O. Pulse Width Modulation 0.25-5.0 secs. Feedback 1-5 Vdc
ME4840Modulating24VacN.O. Selectable 0-10Vdc, 2-10Vdc, 4-20mA. Feedback 1-5 Vdc
ME4844Modulating24VacN.O. Selectable 0-5Vdc, 5-10Vdc. Feedback 1-5 Vdc
ME4940Modulating24VacN.C. Selectable 0-10Vdc, 2-10Vdc, 4-20mA. Feedback 1-5 Vdc
ME4944Modulating24Vac

N.C. Selectable 0-5Vdc, 5-10Vdc. Feedback 1-5 Vdc

WIRELESS ACTUATORS


ME83XXV2Modulating 24Vac FLP, operates on EnOcean protocol, 902 MHz USA, 868 MHz Europe


THERMO-ELECTRIC ACTUATORS - SPRING RETURN (FAIL SAFE)


ME1608ON/OFF or PWM24Vac / DCN.O. (Normally open)
ME1708ON/OFF or PWM24Vac / DCN.C. (Normally closed)
ME1708SON/OFF or PWM24VacN.C. (Normally closed) with SPST auxiliary switch
PNEUMATIC ACTUATORS
MP5100
