KMC Conquest™ BAC-190000 series FlexStats provide flexible, set-and-forget control over indoor environmental quality. They can do this as stand-alone HVAC control units without the expense of a large BAS (Building Automation System) or as integrated, networked components of a BAS. FlexStats are wallmounted, touchscreen, combined sensors and controllers. The intelligent integral temperature/humidity/motion/CO2 -sensing, wall-mounted thermostats simplify networked zone control for common HVAC equipment, which can be controlled via the on-board or custom libraries of programs. The integrated schedules, alarms, and trends enable these native BACnet Advanced Application Controllers (B-AAC) to be powerful edge devices for the modern smart building ecosystem.

Key features include the following:

• A touchscreen operator interface provides system viewing and adjusting for users. The customizable screen features a title bar, room temperature and setpoint displays, four-object icon bar, time and date display, and up to 24 total rotation value displays (e.g., humidity, CO2, OAT, and DAT) in three areas of eight current values each.

• Up to four internal sensors in a single package minimizes labor, wiring, and wall space, while standard temperature and optional humidity, motion, and CO2 sensors allow expanded energy-efficient control.

• Besides the internal sensors, input terminals for six external inputs are provided. Nine outputs provide a combination of relays and universal (analog) outputs.

• Communication options include BACnet MS/TP, Ethernet, or IP (Normal or Foreign Device).

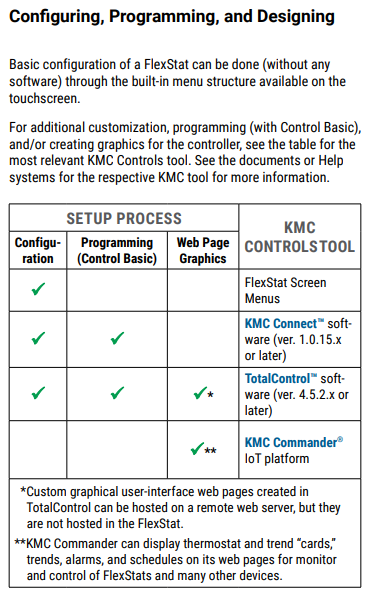

• An on-board library of programs permits models to be rapidly configured from the touchscreen for a range of control applications. For demanding custom requirements, these controllers are also fully programmable, using KMC software, to adapt the standard library to the unique application-specific requirements of a particular project.

  • KMC TotalControl™ additionally provides the capability of creating custom graphical web pages (hosted on a remote web server) to use as a remote user-interface for the controllers.
  •  The IoT platform KMC Commander® provides remote monitoring and control with quickly createable dashboard thermostat and trend “cards” on a PC or mobile device as well as remote alarms and dedicated trend graph pages

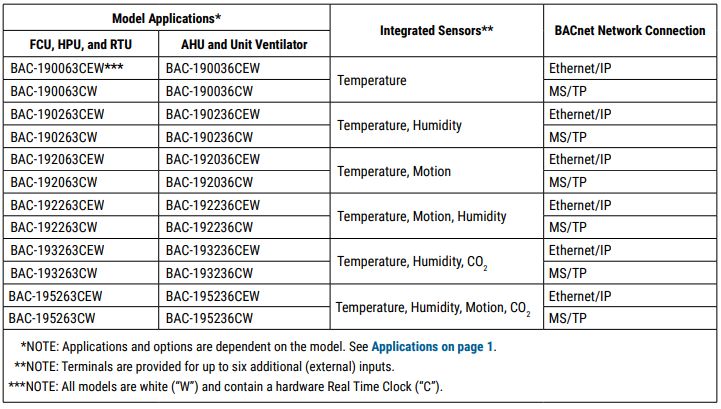

    • MODELS

    See the chart on the next page. BAC-19xx36C (3 relays, 6 analog/universal outputs) and BAC-19xx63C (6 relays, 3 analog/universal outputs), such that model numbers with a:

    • 5 in the first numeral slot (i.e., BAC-195xxxC) include integrated CO2 and motion sensors.

    • 3 in the first numeral slot (i.e., BAC-193xxxC) include an integrated CO2 sensor.

    • 2 in the first numeral slot (i.e., BAC-192xxxC) include an integrated motion sensor.

    • 2 in the second numeral slot (i.e., BAC-19x2xxC) include an integrated humidity sensor.

    • C suffix (i.e., BAC-19xxxxC) include a hardware Real Time Clock (standard on all models).

    • E suffix (i.e., BAC-19xxxxCE) have Ethernet (BACnet over Ethernet, BACnet over IP, or BACnet over IP as Foreign Device) communication options. MS/TP models have no E.

    APPLICATIONS

    BAC-19xx36C models:

    • Air Handling Units

    • Unit Ventilators (4-Pipe) BAC-19xx63C models:

    • Fan Coil Units (2- and 4-Pipe)

    • Heat Pump Units

    • Roof Top Units These applications can be configured from the touchscreen without using any software. Additional customization and applications beyond the standard library can be created using software.

    SPECIFICATIONS


    Sensors
    Temperature Sensor
    Sensor typeThermistor, 10K Type II
    Accuracy±0.36° F (±0.2° C)
    Resistance10,000 ohms at 77° F (25° C)
    Humidity Sensor (optional)
    Sensor typeCMOS
    Range0 to 100% RH
    Accuracy @ 25°C±3% RH (10 to 90% RH)
    Response timeLess than or equal to 4 seconds
    CO2 Sensor (optional)
    Detector typeNon Dispersive Infrared (NDIR), with dual channel detector for superior stability
    Rated life15 years minimum
    Operating limits32° to 122° F (0 to 50° C)
    CO2 range400 to 10,000 ppm
    Accuracy±(30 ppm + 3% of measured value)
    CalibrationAutomatic calibration built-in*

    Inputs and Outputs
    Inputs, Universal (6 on Terminal Blocks)
    Universal inputsConfigurable as analog, binary, or accumulator objects
    Termination1K and 10K ohm sensors, 0–12 VDC, or 0–20 mA (without need for an external resistor)
    Resolution16-bit analog-to-digital conversion
    ProtectionOvervoltage protection (24 VAC, continuous)
    Wire size14–22 AWG, copper, screw terminal blocks
    Outputs, Universal (3 or 6)
    Universal outputsConfigurable as an analog (0 to 12 VDC) or binary object (0 or 12 VDC, on/off)
    Power/protectionEach short-circuit protected universal output capable of driving up to 100 mA (at 0–12 VDC) or 100 mA total for each bank of 3 outputs (outputs 4-6 and 7-9)
    Resolution12-bit digital-to-analog conversion
    Wire size14–22 AWG, copper, screw terminal blocks

    Outputs, Relays (3 or 6)
    Relays outputsThe NO, SPST (Form “A”) relays carry 1 A max. per relay or 1.5 A per bank of 3 relays (relays 1–3 and 4–6) @ 24 VAC/VDC
    Wire size14–22 AWG, copper, screw terminal blocks
    Communications
    MS/TP (optional)One EIA-485 port (screw terminals) for BACnet MS/TP, operating at 9.6, 19.2, 38.4, 57.6, 76.8, or 115.2 kilobaud; max. length of up to 4,000 feet (1,200 meters) of 18 AWG shielded twisted-pair, no more than 51 pf/ ft (167 pf/m); not available on “E” models
    Ethernet (optional)On “E” model only, a 10/100BaseT Ethernet connector for BACnet IP (Normal or Foreign Device) or Ethernet 802.3 (ISO 8802-3); segmentation supported; up to 328 ft (100 m) between controllers (using T568B Category 5 or better cable)

    Configurability

    Hardware Features


    Processor, Memory, and Clock


    Processor32-bit ARM® Cortex-M4
    MemoryPrograms and configuration parameters are stored in nonvolatile memory; auto restart on power failure
    RTCReal time clock with (capacitor) power backup for 72 hours (“C” model only) for network time synchronization or full stand-alone operation


    Installation

    Power


    Supply voltage24 VAC (50/60 Hz) or 24 VDC; –15%, +20%; Class 2 only; non-supervised (all circuits, including supply voltage, are power limited circuits)
    Required power13 VA, plus external loads
    Wire size14–22 AWG, copper, in a removable screw terminal block

    Connections

    Screw terminalsWire size 14–22 AWG, for inputs, outputs, power, and MS/TP network
    Modular RJ-45 jackEthernet port on “E” versions for standard T568B (Category 5 or better) Ethernet patch cable up to 328 feet (100 meters)
    Four-pin EIA-485 DData port on the underside of the case enables easy temporary computer connection to the BACnet network (using an interface cable included with the HPO-5551 tech cable kit for the BAC-5051E)

    Display

    TypeColor resistive touchscreen
    Size2-7/8 x 2-3/16 inches (720 x 550 mm)
    FeaturesCustomizable screen includes a title bar, dedicated room temperature and setpoint displays, customizable four-object icon bar, time and date display, and up to 24 total rotation value displays (e.g., humidity, CO2, OAT, and DAT) in three areas of eight current values each
    IconsAnimated, language-independent, symbols showing fan, occupancy, heating, cooling, and auto

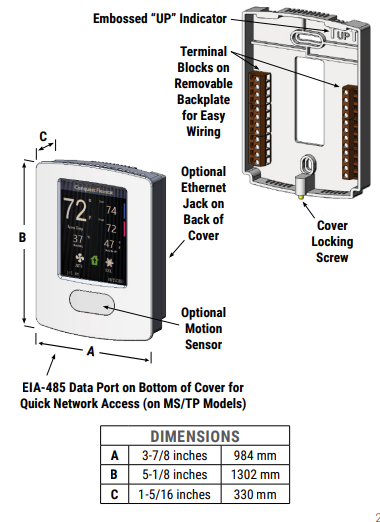

    Enclosure and Mounting

    Weight0.6 lbs. (0.27 kg)
    Case materialFlame-retardant plastic
    MountingSurface mount directly to any flat surface or to a 2 x 4 inch or 4 x 4 inch electrical box (mounting on a 4 x 4 box requires an HMO-10000W backplate)

    NOTE: The two-piece design allows field rough-in and termination of field wiring to the backplate without needing the FlexStat at the site—permitting FlexStats to be bulk-configured off-site and plugged into the wired backplates at a later time if desired.

    Environmental Limits

    Operating34 to 125° F (1.1 to 51.6° C)
    Shipping–40 to 140° F (–40 to 60° C)
    Humidity0 to 95% relative humidity non-condensing

    Warranty, Protocol, and Approvals

    Warranty

    KMC Limited Warranty 5 years (from mfg. date code)


    BACnet Protocol


    StandardMeets or exceeds the specifications in ANSI/ASHRAE BACnet Standard 135-2010 for Advanced Application Controllers
    TypeBTL-certified as a B-AAC controller type


    Regulatory Approvals


    BTLBACnet Testing Laboratory listed as Advanced Application Controller (B-AAC) (pending)
    ULUL 916 Energy Management Equipment listed
    RoHS 2RoHS 2 compliant (pending)
    FCCFCC Class A, Part 15, Subpart B and complies with Canadian ICES-003 Class A*

    *This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
