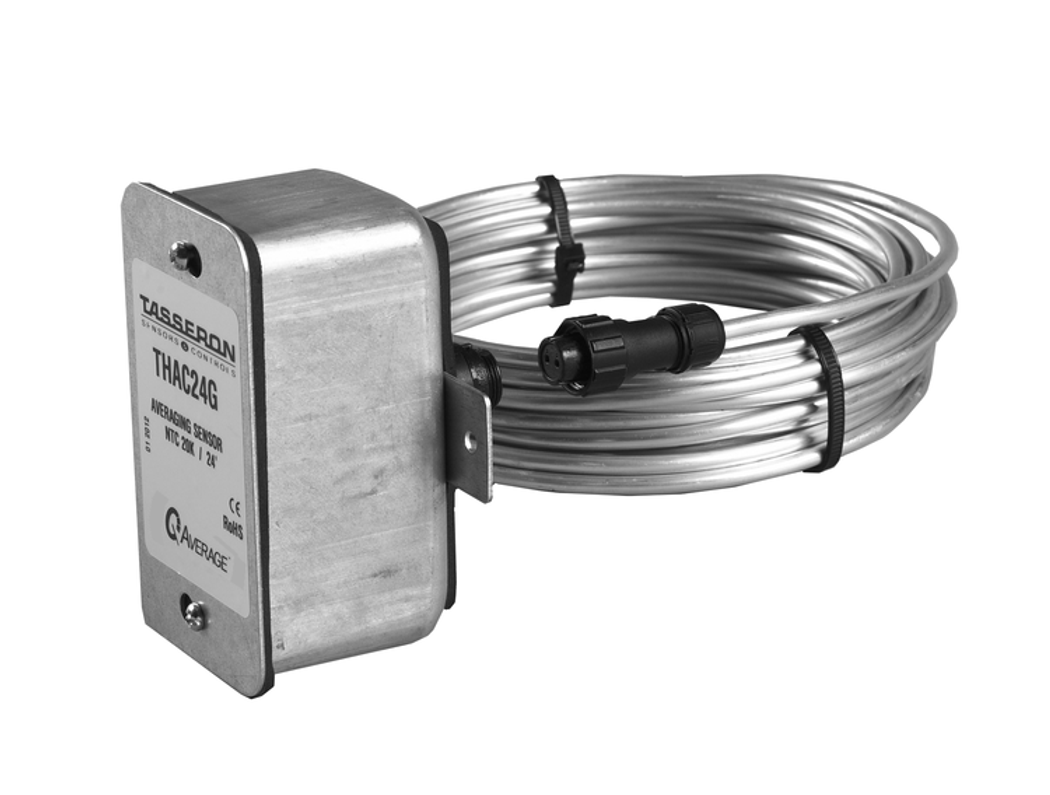

Duct Averaging Temperature Sensor

FEATURES

 Galvanized enclosure with Quick Attach Cover

 Flexibale Lengths of 8’, 12’, 24’ or Rigid Probe Length of 18”

 Patented Quick Coupling from enclosure to sensing tube

 Quick Connect wire terminals eliminate wire nuts

 NTC thermistor, RTD elements and transmitters available

 Compatible with most major control systems

 CE & RoHS compliant

 5 Year Limited Warranty

 Made in USA

GENERAL INFORMATION

High quality Duct Averaging Temperature Sensor with an IP40 galvanized steel enclosure. Patented water tight Quick Coupling allows for disconnection of the sensing tube to the enclosure, for fast installation. Sensing tube is 7mm diameter flexible aluminum tubing or 18” 316L rigid stainless steel.

Available measuring elements interface with most major control manufacturers. Accurate interchangeable thermistors ensure low drift and are double encapsulated to guarantee the highest reliability. Transmitters available with 4-20mA, 2 wire loop connection and three field selectable, pre-set temperature ranges.

SPECIFICATIONS


EnclosureNEMA 2/ IP 40 / 1.2mm galvanized steel (NEMA 3S/IP 54 with weatherproof grommet)
CoverDual slotted, gasketed galvanized steel Quick Attach cover
MountingIntegrated galvanized steel flange with two # 8 mounting holes
Connection2-pole AWG 22-16 / 0.35 - 1.5mm2 spring-loaded, Quick Connect wire terminals

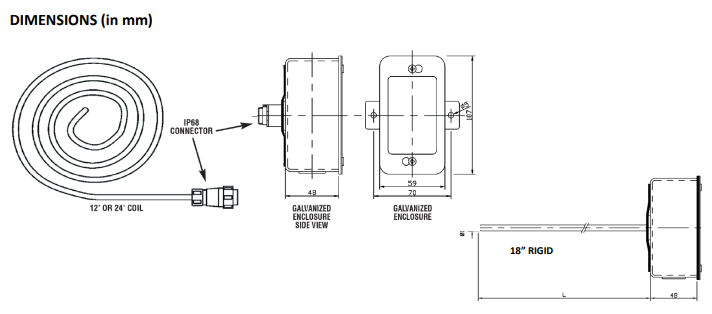

Probe Length8’, 12’, or 24’ coiled, and 18” rigid
Probe Material7mm aluminum tubing, and 18” rigid 316L stainless steel
Quick CouplingNEMA 6P/IP 68 Water tight Quick Coupling from probe to enclosure
Sensor ElementInterchangeable NTC thermistor, 2-wire RTD Pt100, Pt1000, 2-wire RTD Ni1000-891, Ni1000-TC5, 2 wire
Number of elements24’ has 9 sensors, 12’ has 4 sensors, 8’ has 4 sensors, 18” has 4 sensors

SPECIFICATIONS CONT.

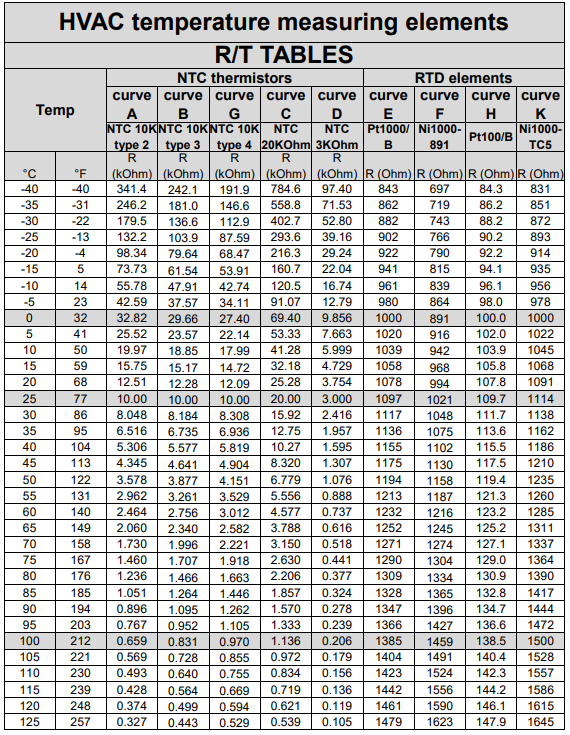

Sensor ValueNTC 10K Ohm type 2 @ 25°C / 77°F
NTC 10K Ohm type 3 @ 25°C / 77°F
NTC 20K Ohm @ 25°C / 77°F
NTC 3K Ohm @ 25°C / 77°F
RTD Pt1000 1000 Ohm @ 0°C / 32°F
RTD Pt100 100 Ohm @ 0°C / 32°F
RTD Ni1000-891 891 Ohm @ 0°C / 32°F
RTD Ni1000-TC5 1000 Ohm @ 0°C / 32°F
(Other elements on request)
AccuracyNTC thermistor 0...70°C ± 0.2°C / 32...158°F ± 0.36°F
Pt100 / Pt1000 Class B IEC751, ± 0.3°C / ± 0.5°F @ 0°C / 32°F
Ni1000 DIN 43760, ± 0.5°C / ± 0.9°F @ 0°C / 32°F
Range-40...105°C / -40...221°F
Transmitter ElementPt1000 IEC 751
Loop Supply Voltage8 - 36 VDC, 100 Ohm load 10.5 - 36 VDC, 250 Ohm load 14.25 - 36 VDC
Supply Current4 - 24 mA
Resolution0.05% FSR
Accuracy0.1% - 0.4% FSR
Connection2-pole AWG 22-16 / 0.35 - 1.5mm2 spring-loaded, Patent Pending Quick Connect Syst.
Operating Env-25°C- 50°C
Temp. RangesRange 1 0°C - 100°C / 32°F - 212°F
Range 2 -7°C - 49°C / 20°F - 120°F
Range 3 -18°C - 38°C / 0°F - 100°F
Dimensions40mm X 19mm
Short Circuit Det.< 840 Ohm
Open Circuit Det.> 1500 Ohm
Fault Current:>22.5 mA
ApprovalCE & RoHS compliant
Warranty5 year limited warranty
.

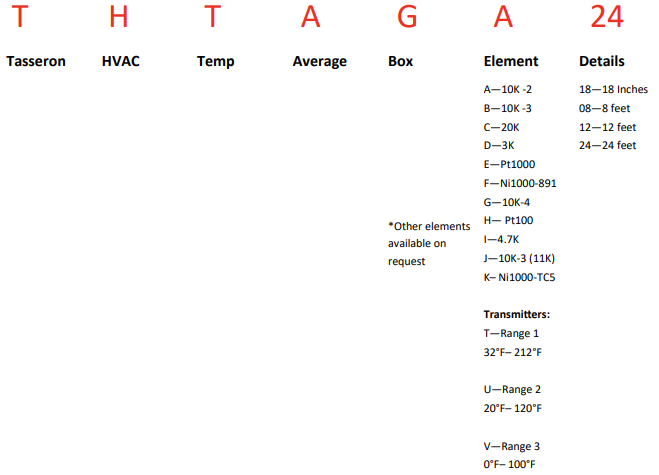

HOW TO BUILD A TASSERON Q-AVERAGE BOX PART NUMBER

Sample Part Number (THTAGA24) —Q-Duct Box sensor with 10k Type 2 element and 24’ coil.
