AC POWER SUPPLIES WITH LOW VOLTAGE COMPARTMENT

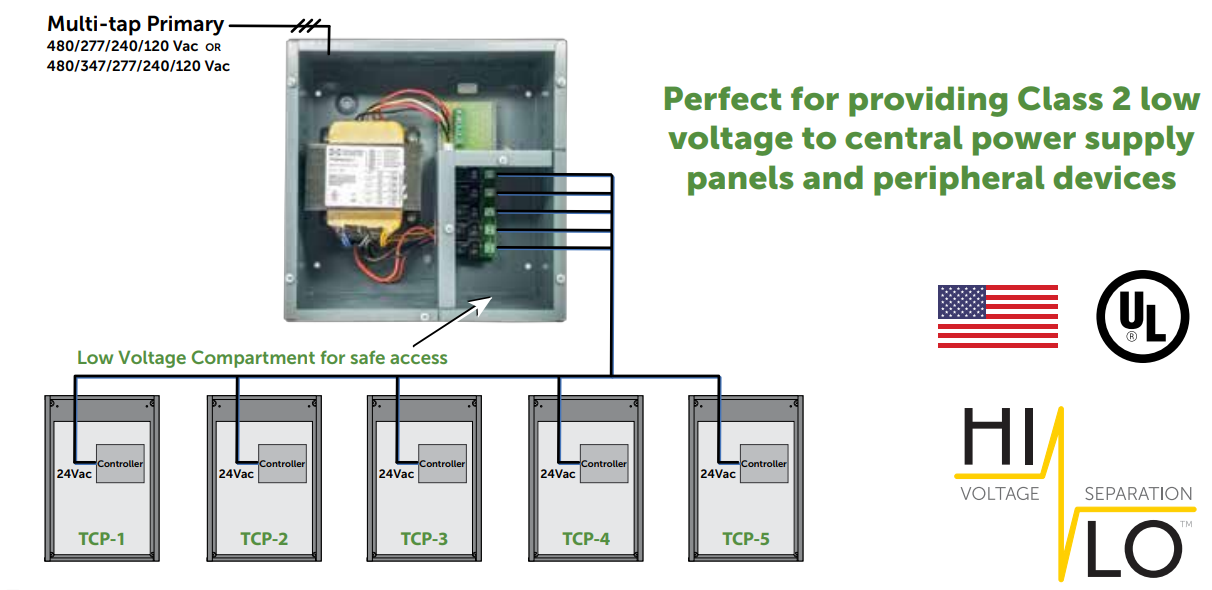

Eliminate high voltage in your control panel and the need for personal protective equipment (PPE) by using our Low Voltage Compartment Power Supplies. This series of products has a separate wiring compartment (with removable cover) to safely access the removable terminal blocks.
Features
• Three or five isolated 100 VA Class 2, 24 Vac outputs with 4 Amp Breaker and individual On/Off switches. Also available with five 40 VA outputs (See chart below)
• NEMA 1 metal enclosure has separate low voltage compartment with cover
• Multi-tap primaries: 480/277/240/120 Vac or 480/347/277/240/120 Vac
• Seismic Certification of Equipment and Components: OSP-0201-10
• UL Listed
AC POWER SUPPLIES WITH LOW VOLTAGE COMPARTMENT
MODEL# | TRANSFORMER(s) | INPUT POWER | HEIGHT | WIDTH | DEPTH | 120 VAC OUTLET# | BREAKER PER OUTPUT | SECONDARY CONFIGURATION | HOUSING STYLE |
PSH500A-LVC | 500 VA (five 100 VA Outputs) | 480/277/240/120 Vac | 12.125˝ | 12.125˝ | 6.000˝ | 5 x 4 Amp | Terminals | Enclosed with Low Voltage Compartment | |
PSH300A-LVC | 300 VA (three 100 VA Outputs) | 480/277/240/120 Vac | 12.125˝ | 12.125˝ | 6.000˝ | 3 x 4 Amp | Terminals | Enclosed with Low Voltage Compartment | |
PSH200A-LVC | 200 VA (five 40 VA Outputs) | 480/347/277/240/120 Vac | 12.125˝ | 12.125˝ | 6.000˝ | 5 x 2 Amp | Terminals | Enclosed with Low Voltage Compartment | |
PSH500AB10-LVC | 500 VA (five 100 VA Outputs) | 120 Vac | 12.125˝ | 12.125˝ | 6.000˝ | * | 5 x 4 Amp | Terminals | Enclosed with Low Voltage Compartment |
PSH300AB10-LVC | 300 VA (three 100 VA Outputs) | 120 Vac | 12.125˝ | 12.125˝ | 6.000˝ | * | 3 x 4 Amp | Terminals | Enclosed with Low Voltage Compartment |
PSH200AB10-LVC | 200 VA (five 40 VA Outputs) | 120 Vac | 12.125˝ | 12.125˝ | 6.000˝ | * | 5 x 2 Amp | Terminals | Enclosed with Low Voltage Compartment |
2024 Apr 15th
