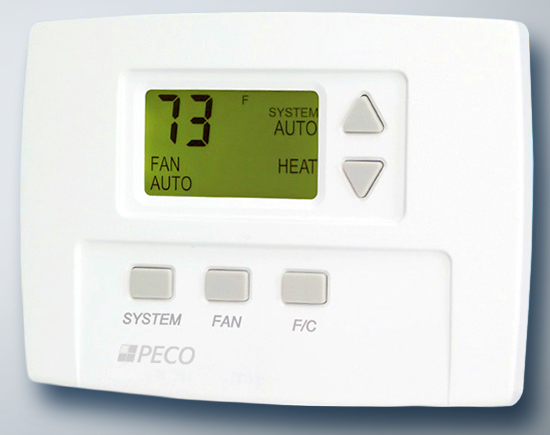

Digital Controllers Fan Coil & Line Voltage thermostats by PECO

Standalone digital thermostats that handle line or low voltage control of heat, cool, outside air and up to 3 fan speeds with 2/4 pipe configuration.

T180

  • Programmable
  • 7-day / 4-event
  • 3 Fan speeds w/ setback capability
  • 24 or 110-277 VAC supply voltage selection
  • Key pad lockout
  • 2-pipe/4-pipe fan coil configuration
  • Manual or auto changeover
  • Remote sensor, occupancy setback ready
  • LCD display with backlight
  • Fahrenheit or Celsius display
  • Energy Star, ASHRAE 90.1 & Title 24 compliant

T170

  • Non-programmable
  • 3 Fan speeds w/ setback capability
  • 24 or 110-277 VAC supply voltage selection
  • Keypad lockout
  • 2-pipe/4-pipe fan coil configuration
  • Manual or auto changeover
  • Remote sensor, occupancy setback ready
  • LCD display with backlight
  • Fahrenheit or Celsius display
  • ASHRAE 90.1 & Title 24 compliant

Specifications


Temperature Control Range50 to 90°F / 10 to 32°C factory default, adjustable inward
Maximum Ambient130°F / 54°C
Load ConnectionsWire leads
Agency ApprovalsUL, UL Canada

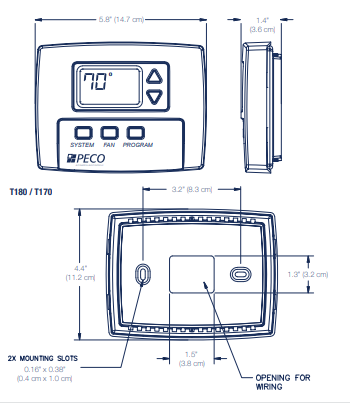

Physical Dimensions5.8” W x 4.4" H x 1.4" D 14.7 cm x 11.2 cm x 3.6 cm
MountingInstalls on standard 4" x 4" (10.2 cm x 10.2 cm) device box with 2" x 4" (5.1 cm x 10.2 cm) horizontal mud ring

Technical Data

Ratings

VOLTAGEFLALRARES AMPSPILOT DUTYHP
24 VACNANANA24 VANA
120 VAC5.834.86.0125 VA1/4
240 VAC2.917.45.0125 VA1/4
277 VAC2.414.44.2125 VA1/4

Models & Accessories

ModelPart No.Description
TA170-00168348Non-programmable. 1H/1C, up to 3 fan speeds.
TB170-00168457Non-programmable. 1H/1C, up to 3 staged fan speeds
TA180-00169378Programmable. 1H/1C, up to 3 fan speeds.
TB180-00169379Programmable. 1H/1C, up to 3 staged fan speeds.
6930869308

Remote wall sensor

6867168671Remote probe, pipe sensor
SB200-00168375Occupancy sensor - time based
SK200-00168381Occupancy sensor - guest room
