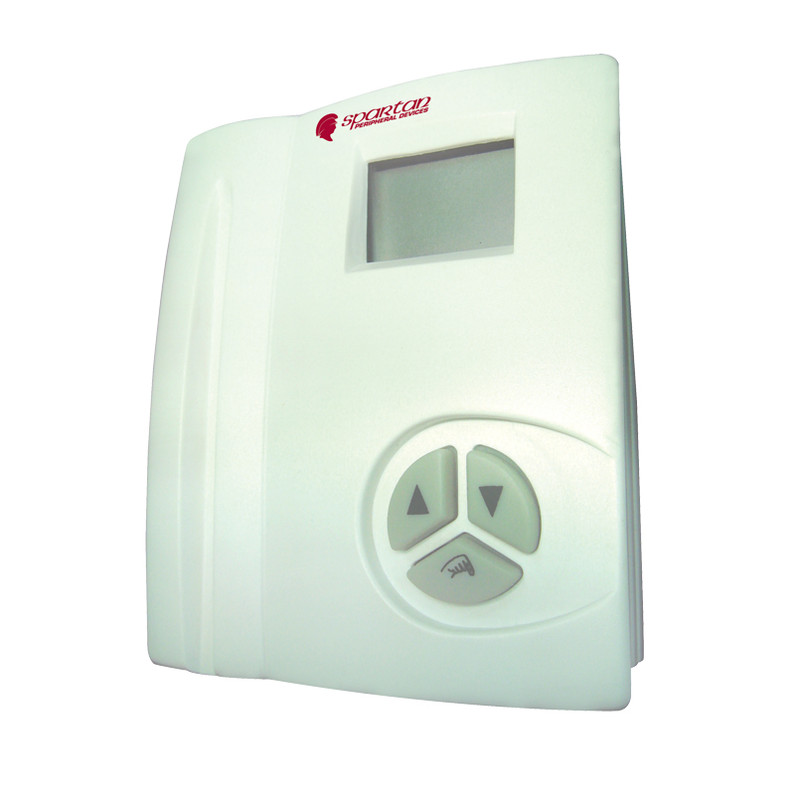

TE110 ON/OFF LCD ELECTRONIC THERMOSTAT 24Vac

Two position On/Off electronic room thermostat with digital display and digital key set point. Suitable for controlling heating or cooling valves, fans or other two position devices to maintain an accurate room temperature. Selectable Celsius or Fahrenheit scale by jumper J1. External heating/cooling changeover thermostat or wire jumper can be connected to terminals 4 and 5 to select heating or cooling mode. Economy mode can be implemented by grounding terminal 6 or connecting a contact across terminal 6 and 7. The set point will increase or decrease by 4°C or 8°F. The hand icon will be displayed. Pressing the hand button for 3 seconds will override to a regular mode for a 2 hour period. Optional external 10K NTC type 3 temperature sensor can be connected to terminal 8 and 9 and selected by jumper J2. Full or limited set point adjustment can be set with jumper J3. If using the thermostats for DX cooling an extended delay can be selected with jumper J4.

General Specifications

Operating voltage: 24Vac, 50/60Hz, +/- 20%

Power consumption: Maximum 3Va

Control output: 24Vac, 5Amp

Switching: 1 ºF (0.5 ºC)

Sensing Element: 10k NTC type 3

Thermistor Connection terminals: Use solid wire 22 AWG to 14 AWG

Digital Display: Temperature in °C or °F, set point, heating or cooling output

Set point range standard: 50-90ºF in 1ºF, 10-32ºC in 0.5ºC resolutions

Set point range limited: 65-75ºF in 1ºF, 18-24ºC in 0.5ºC resolutions

Operating temperature: 32-122 ºF or 0-50 ºC, < 95% RH

Housing cover/base color: Cover white, base grey

Wall mounting plate: Color white, mounting holes for European and North American standards, fits 2 x 4 electric box

Optional: External 10K NTC type 3 thermistor Shipping weight: 0.5Lbs (0.225 Kg)

Agency approval: Conforms to CE/ROHS requirements Class 2 as per UL/CSA

TE112H Room or Duct Type 2 Stage High Temperature Range 2 position ON/OFF LCD Electronic 24V Thermostat

Two stage two position ON/OFF electronic thermostat with digital set-point and display with high temperature range 40 - 130°F (5 - 55°C), can be used as a room controller with internal sensor, or as a duct thermostat with an optional external 10K sensor. Suitable to control two stage heating or cooling devices with selectable span and differential setting (see instruction sheet) to suit the most demanding applications. Set point can be limited to a narrow range by the use of jumper no 3.

General Specifications

Operating voltage: 24Vac, 50/60Hz, +/- 20%, maximum 3Va

Control output: 24Vac, 24Amp Switching: 1 ºF (0.5 ºC)

Sensing Element: NTC Thermistor

Connection terminals: Use solid wire 22 AWG to 14 AWG

Digital Display: Temperature and set point in °C or °F, will show flashing icon on heating demand

Temp. control range: 40-130ºF, (5-55ºC)

Temperature display: 32-140 ºF, (0-60 ºC)

Operating temperature: 32-104 ºF or 0-40 ºC, < 95% RH

Housing cover/base color: Cover white, base grey

Wall mounting plate: Color white, mounting holes for European and North American standards, fits 2 x 4 electric box Optional: External 10K NTC type 3 thermistor

Shipping weight: 0.5Lbs (0.225 Kg)

Agency approval: Conforms to CE/ROHS requirements Class 2 as per UL/CSA

Changing the Set Point: To change set point use the increase or decrease keys.

LCD display will illuminate after pressing hand key for 10 seconds.

Output icon - Stage 1 heating is turned on, LCD displays icon - Stage 2 heating is turned on, icon will be flashing - All output is off, no icon will be shown

On Power Failure After power is restored, the setpoint will return to the last setting
